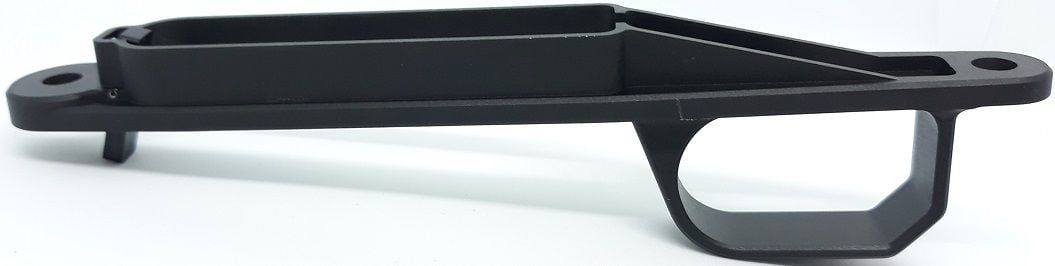

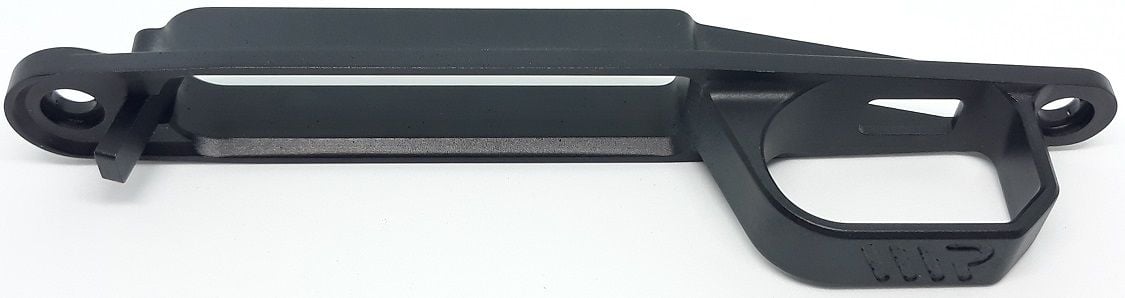

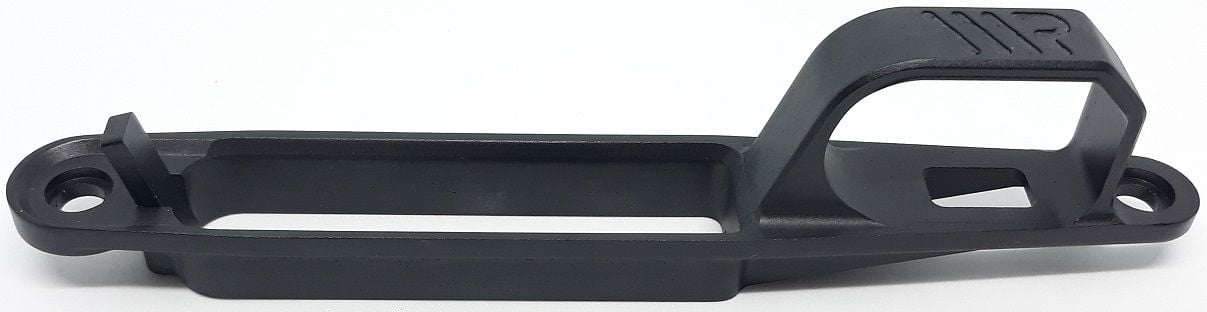

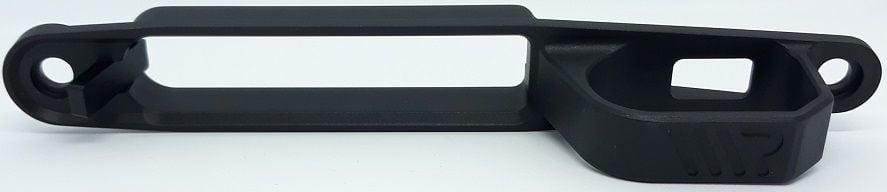

============================================================================================================ WR TIKKA T3 / T3x REPLACEMENT FLOORPLATE BOTTOM METAL (DBM) TRIGGER GUARD (expandable and tactical) *** Drop in fit (no mods) *** Uses the factory or WR T3x magazines.A truly “tactical” bottom metal, trigger guard DBM floorplate. Now, the T3 platform can be simply transformed into something more, increasing its diversity to supported and practical styles of shooting, while maintaining the option to run as a basic lightweight rifle, by using this DBM. PN: 1011, Price A$155ea. AVAILABLE NOW. Weight 65g / 2.3oz. Like the other WR T3 floorplates, this bottom metal is also “tactical” ready for the WR bolt on Picatinny Rail (PN 4011) and WR Tee wing ad-on (PN 4022).
Some of the WR T3 floorplate ADVANTAGES are: - Aluminium 7075 material, finished in hard black anodise. Well weighted release spring. - - Longer release leaver, for simple and rapid mag changes (longer by approx 8mm (5/16")). - Larger trigger guard for shooting with a glove, and wider trigger guard as a possible support. - Heavily chamfered mag port entry for speed of inserting the magazine, and direct feed ramp from front of trigger guard. - Wider trigger entry slot for wider aftermarket triggers levers. - Comes with new front and rear steel BLACK button head hex head take-down bolts. Tension to 6Nm, 4.5 ft-lbs, 54 in-lbs.

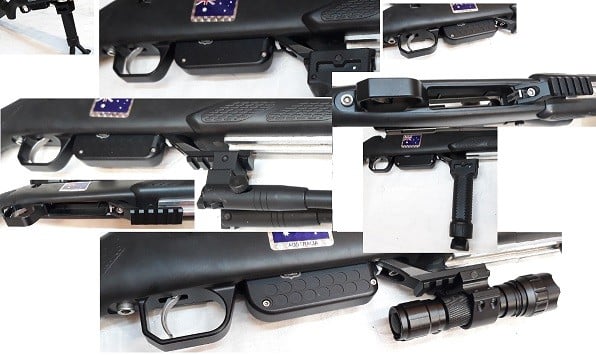

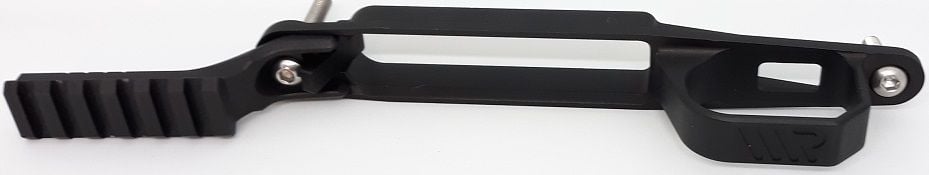

========================================================================================================= WR TIKKA T3 TACTICAL FLOORPLATE - PICATINNY RAIL AD-ON… Simply slot in place and bolt this bottom pic rail to the WR floorplate. It does not affect mag operation, and allows the attachment of pic rail type mount accessories – such as bi-pods, barricade supports, sling swivels, flashlights, laser sights, grips, etc. Machined from solid billet aluminium and hard black anodised. Weight 40g / 1.4oz. Tension to 6Nm, 4.5 ft-lbs, 54 in-lbs. PN: 4011, Price A$94ea. AVAILABLE NOW.

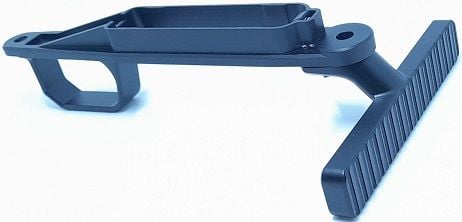

WR BARRICADE STOP and hand SUPPORT TEE PIECE. The latest barricade stop for the WR suite of T3 bottom metal floorplates.Used in practical shooting applications for shooting off supports, barricades, frames, structural simulations, steadies and other shooting obstacles.This bolts directly the rifle bottom metal for a very rigid hold soluiton.Wing shaped out the sides below a fixed stem also allow an ergonomic use of the barricade stop as a handle on a vertical posts and similar applications.Has a multi-raise serrated like front edge for natural solid grip.Machined from solid billet aluminium and hard black anodised.Weight 70g (2.47oz). PN: 4022, Price A$91ea. AVAILABLE NOW.

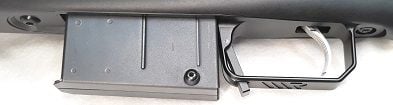

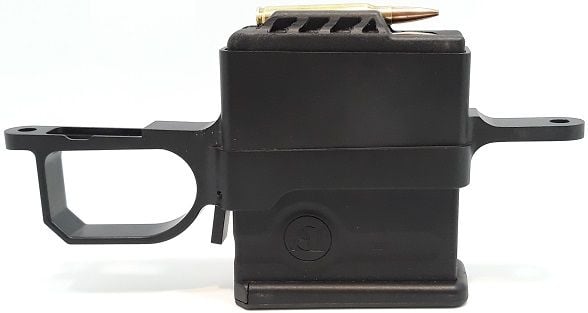

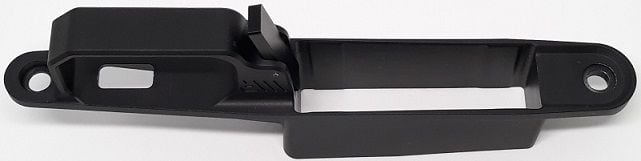

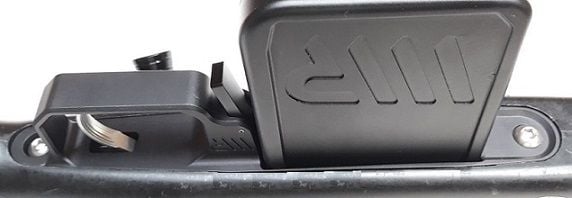

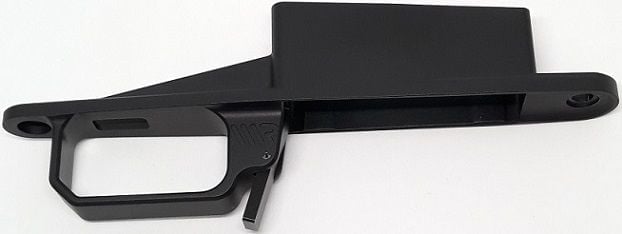

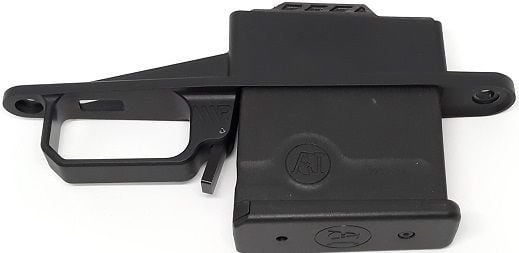

========================================================================================================= WR TIKKA T3 / T3x FLOORPLATE BOTTOM METAL (DBM) TRIGGER GUARD (expandable and tactical) CONVERSION TO AI / AICS SHORT ACTION MAGAZINES.Development in 2018 for Tikka T3 owners to use cheaper AICS pattern magazines. This is the best and cheapest solution to change the T3/T3x over to AICS without having to buy expensive aftermarket stocks and chassis. Note, this item is not a drop in. Fitting isn't hard, just takes a little time with simple plastic cutting tools (of choice). The AICS magazine is much wider than the T3x magazine, so the stock must be inletted to a minor amount to cater for this. However the base plate footprint is the same, so any stock material removal areas are not seen. Like the other WR T3 floorplates, this bottom metal is also “tactical” ready for the WR bolt on Picatinny Rail (PN 4011) and WR Tee wing ad-on (PN 4022). PN: 1012, Price A$155ea. AVAILABLE NOW. Weight 80g / 2.8oz. This DBM accepts the WR 4011 Pic Rail and 4022 Barricade stop ad-ons...
<= Left is a factory AICS magazine. ^= Above is a WR AICS pattern magazine.
========================================================================================================= WR TIKKA T3 / T3x FLOORPLATE BOTTOM METAL (DBM) TRIGGER GUARD (expandable and tactical)CONVERSION TO AI / AICS LONG ACTION 3.560" MAGAZINES. *** DROP IN FIT - no modifications needed***Tikka T3/T3x owners can now use cheaper AICS pattern magazines AND achieve greater length OAL ammunition. Best and cheapest solution to change a T3/T3x over to AICS without buying expensive aftermarket stocks and chassis.PN: 1013, Price A$155ea. AVAILABLE NOW. Weight 70g / 2.4oz. This DBM accepts the WR 4011 Pic Rail and 4022 Barricade stop ad-ons...

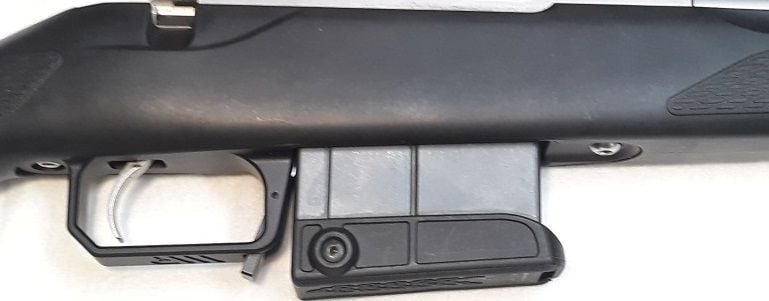

========================================================================================================= WR TIKKA CTR / UPR / ARCTIC FLOORPLATE BOTTOM METAL (DBM) TRIGGER GUARD (expandable and tactical)A truly “tactical” bottom metal, trigger guard DBM floorplate to suit the TIKKA CTR, TIKKA UPR and TIKKA ACRTIC rifles and continues to accept the CTR, TRG, TAC-A1, UPR compact SA detachable magazine varieties. No modifications to your CTR/UPR/ARCTIC stock (DROP IN FIT). PN: 1014, SOLD OUT. NO ETA. CONTACT US. Weight: 90 grams (3.3oz) This DBM accepts the WR 4011 Pic Rail and 4022 Barricade stop ad-ons... *** CONSIDER... TAKE THE LEAP and change the bottom metal to accept AICS magazines (cheaper, more available, more options). Part #1015. ***
QUICK RELEASE... Note the mag release lever inside the trigger guard. Allows for quick mag change - pull the trigger, press forward to release the mag. QUICK LOADING... Note the extra large lead-in chamfer into the mag well.
Above is the WR CTR bottom metal with the WR tactical bottom accessory picatinny rail attached.
=========================================================================================================
WR TIKKA CTR / UPR / ARCTIC FLOORPLATE BOTTOM METAL (DBM) TRIGGER GUARD (expandable and tactical)CONVERSION TO AI / AICS SHORT ACTION MAGAZINES. *** DROP IN FIT - no modifications needed*** A truly “tactical” bottom metal, trigger guard DBM floorplate to suit the TIKKA CTR, TIKKA UPR and TIKKA ACRTIC rifles. For low cost detachable AI / AICS design and pattern short action length magazines for cartridges such as 223 Rem, 22-250 Rem, 243Win, 6.5CM, 308, etc. PN: 1015, Price A$165ea. AVAILABLE NOW. Weight: 100 grams (3.5oz).
This DBM accepts the WR 4011 Pic Rail and 4022 Barricade stop ad-ons...
=========================================================================================================

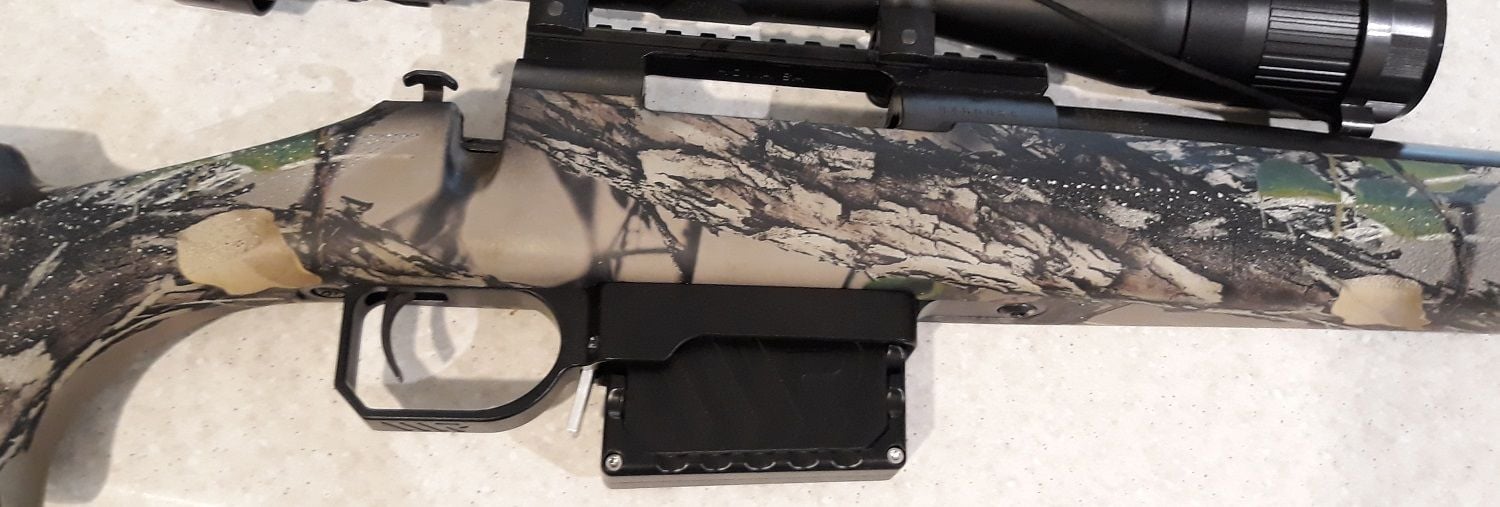

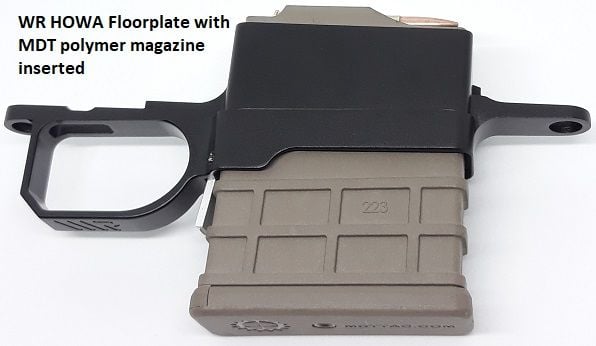

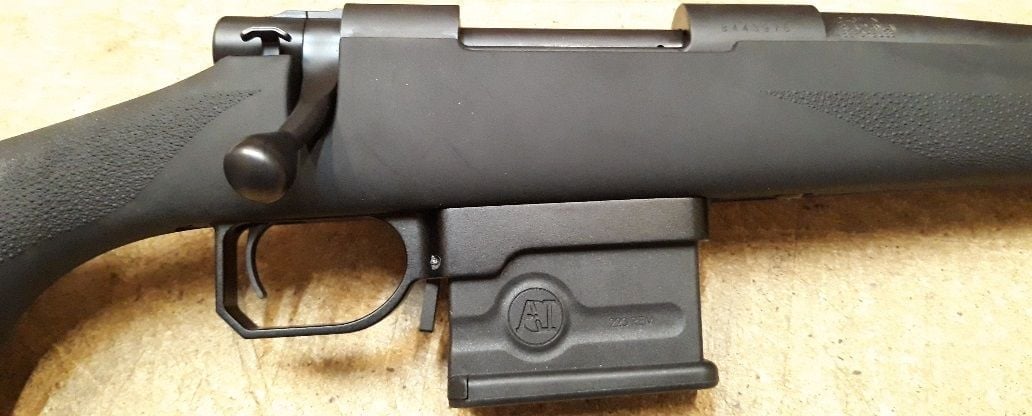

- HOWA 1500 / M1500 SHORT ACTION - WEATHERBY VANGUARD SHORT ACTION - MOSSBERG 1500 SHORT ACTION WR FLOORPLATE BOTTOM METAL TRIGGER GUARD - CONVERSION TO AI / AICS SHORT ACTION MAGAZINES - the best Howa Magazine Conversion KitFor detachable AI / AICS design and pattern short action length magazines for cartridges such as 223 Rem, 22-250 Rem, 243Win, 6.5CM, 308, etc. Note: This bottom metal is a drop in fit, however magazines will not lock in withouth 1 of 2 changes - if the magazine rear can be chamfered, or cut/file the boss on the receiver at the inside rear of the magwell - both these changes are quick and simple. PN: 1021, Price A$155ea. AVAILABLE NOW. Weight: 110gr (3.88oz).
Some of the WR Howa 1500 Short Action drop in fit floorplate advantages are: - Long release leaver for simple and rapid mag changes. Well weighted release lever return spring. - Larger trigger guard for shooting with a glove, and wider trigger guard as a possible support and prevent accident trigger bump. - Uses the factory take-down screws. Tension to 6Nm, 4.5 ft-lbs, 54 in-lbs, or as required by your stock composition and experience. - Heavily chamfered mag entry port for magazine inserting speed. - Extended integrated magazine well to ensure smooth and effective mag insertion and removal. NOTE1. Check the bolt stroke length. The factory bolt stop length determines the cycle stroke length to pickup the round from any magazine. If the bolt stroke is insufficient to cycle back far enough to pickup a round from a detachable magazine, then a very quick and simple bolt stop modification is needed. NOTE2. All our WR AICS short action pattern magazines come with the top rear of the magazines chamfered to allow immediate use in the Howa 1500 short action. Without the modification, such as in other brand magazines, the top rear of the magazine hits the Howa receiver body boss at rear of the magazine inlet port. A fix for this is very simple.
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
SPECIAL NOTE REGARDING AICS MAGS IN HOWA SHORT ACTION RIFLES.When using any AICS mag in the WR Howa SA floorplate or with any floorplate or AICS compatible chassis...
Some WR AICS mags have anincorporated HOWA Drop-In relief.
Some WR AICS magazines come with the Howa relief chamfer in the top rear to fit into the short action Howa recevier without hitting the Receiver boss, making a possible drop in fit solution.

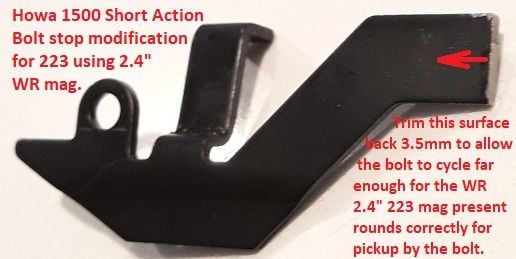

For 223 Howa 1500 SA versions, the bolt stop will need to be shortened by 2.5mm to 3.5mm for the bolt to cycle far enough to the rear to pick up and strip the rounds.
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
========================================================================================================= - HOWA 1500 LONG ACTION - WEATHERBY VANGUARD LONG ACTION WR LONG ACTION DETACHABLE CONVERSION TO AICS 3.560" FLOORPLATE BOTTOM METAL TRIGGER GUARD. The best and easiest Howa Long Action conversion kit in the world. *** DROP IN FIT *** Uses the AICS 3.560 magazine for cartridges such as 270 Win, 3006 Spr, 300 Win Mag, 7mm Rem Mag, etc. HOWA LA owners can now use cheaper AICS 3.560 long pattern magazines without buying expensive aftermarket stocks and chassis. DROP IN FIT to the factory standard rifle (no inletting required). PN: 1022, Price A$170ea. Weight: 125gr (4.4oz) AVAILABLE NOW.

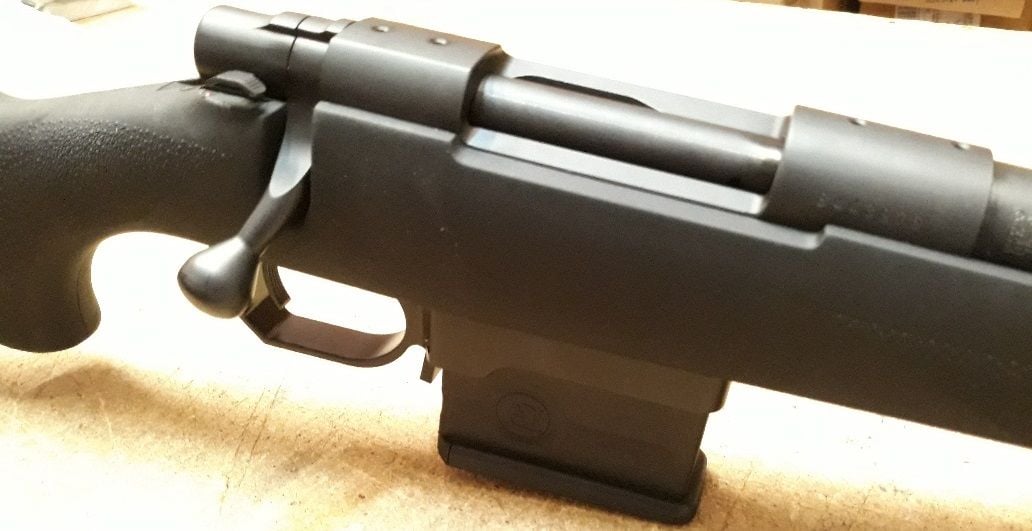

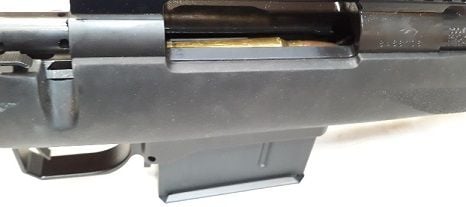

Images show the WR floorplate in a LA Howa 1500 using AICS 3.560 magazine with 300 Win Mag cartridges with 180gr BTHP projectile.
=========================================================================================================

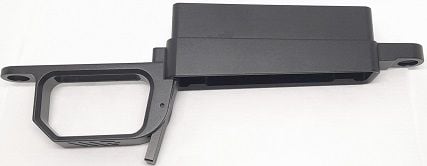

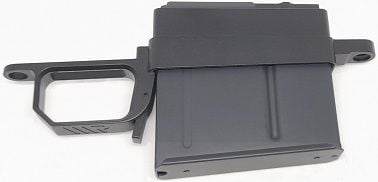

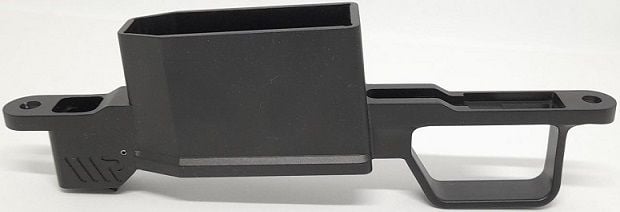

- REMINGTON 700 SHORT ACTION WR DETACHABLE CONVERSION TO AICS SHORT ACTON PATTERN MGAZINES FLOORPLATE BOTTOM METAL (DBM), TRIGGER GUARD One of the ORIGINAL makers of this conversion (since 2001). Used extensivly for 223, 243, 6.5CM, 260 Rem, 7/08 and 308.. First developed in 2001, along with the LA version, this SA unit ceased production in 2008. Surprisingly, the market is again calling for this solution in 2023, thanks to the large release of many clone Rem 700 pattern receivers. We listened, and here it is again.Made of aluminium billet. Hard black anodised finish.Specfically made for Rem 700 owners to create a detachable drop mag soluiton using cheaper correct dimension AICS pattern magazines.This unit fits factory Rem 700 Short Action rifles that have a removable DBM. If your rifle is full wood without a removable DBM, then you will need to open up the stock or get another stock.This should be a drop in fit to a standard rifle - no modifications required. Takes minutes to install. Note, this is made to encourage a tight fitting magazine - to minimise AICS rattle (typical with AICS setups). If the magazine does not clip in, it is likely a tenth of a mm to trim - which is very easy to do with a small fine file.Note on magazines: Suggest, not advice, to use WR AI SA mgazine variety, or MDT metal or MDT poly (only) magazines. Many SA AICS pattern magazines are not made to correct dimensions or tolerance and may require work - feel free to check with us. PN: 1041, Price A$170ea. SOLD OUT. (IN RE-DEVELOPMENT) ETA MARCH 2025. PLEASE EMAIL TO JOIN NOTIFY LIST.

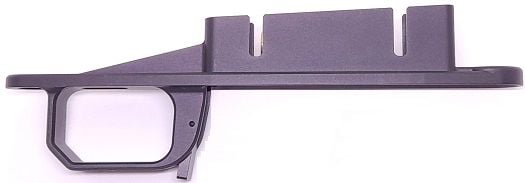

=========================================================================================================- REMINGTON 700 LONG ACTION WR DETACHABLE CONVERSION TO AICS 3.715" FLOORPLATE BOTTOM METAL (DBM) TRIGGER GUARD. The best and easiest REM 700 Long Action conversion kit in the world. *** DROP IN FIT ***Uses the AICS 3.715 magazine for cartridges such as 270 Win, 3006 Spr, 300 Win Mag, 7mm Rem Mag, etc. Remington 700 LA owners can now use cheaper AICS 3.715 pattern magazines without buying expensive aftermarket stocks and chassis.DROP IN FIT to the factory standard rifle (no inletting required). PN: 1042, Price A$180ea. Weight: 90gr (3.1oz) AVAILABLE NOW.
========================================================================================================= STEYR SSG 69 FLOORPLATE BOTTOM METAL (DBM) TRIGGER GUARD (expandable and tactical)CONVERSION TO AI / AICS SHORT ACTION MAGAZINES. *** DROP IN FIT - no modifications needed ***The 2025 version is now available. 23 years in the making, we have decided to stop chasing all the variety of AICS short action magazines, and receive the blame for those mags, and stick with a design for a proven, cheap and widley available AICS SA mag...with front binder plate.Note, this item is drop in fit - no modifications. Fitting takes just a few minutes. Note, unlike other designs, this design has the mag enter the receiver at a front on an angle, so the round strips more directly into the chamber, and reduces the bolt resistance when using metal based AI pattern magazines.The inlet has an extra deep angled flange inlet for speed inserting a magazine.Like the original 2002, 2008 and 2019 units, this is made of light weight 6000 series aluminium, but the 2025 version is the lightest ever, weighing in at 130grams (4.6oz). And, being metal, this also helps reduce fatigue in the stock near the magazine area (the plastic factory floorplate does not help as much as this metal unit does) to help reduce the stock possibly cracking.Has the usual WR extra large trigger hoop to make greater accommodation of a thin gloved finger (eg. for winter shooting).The trigger inlet is long enought to accommodate the double set trigger, but the thru slot is single trigger size. Material is thin and soft enough to be simply filed out to allow the second trigger through.Suggested magazines for most reliable use are the MDT all metal AICS pattern mags with front binder plate (these were used for testing the latest DBM version). If this mag does not clip, the fix is extremely minimal - 30 seconds with a fine small file. We've had the slightest of geometry issue in a couple of rifles, and the fix is to either file the front ramp slightly to increase feed taper, or slightly open the MDT mag retainer lips to lift the round fractionally higher.We do NOT recommend other magazines, including magazines with external ribs, poly/metal combos, etc.PN: 1031, Price A$320ea. AVAILABLE, BUT LOW STOCK. Weight 130 grams / 4.6oz. * * * Click Here for SSG AI SA DBM User Manual and Instructions * * *

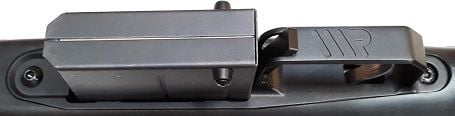

=========================================================================================================- HOWA 1500 MINI ACTION - WEATHERBY VANGUARD MINI- MOSSBERG 1500 - SMITH & WESSON M1500 WR MINI ACTION DETACHABLE FACTORY MAGAZINE BOTTOM METAL TRIGGER GUARDThis is not a conversion kit. This uses the original Howa Mini Factory Magazines. *** DROP IN FIT - no modifications ***Howa Mini Action owners now have a precision all metal and custom quality fit floorplate that allows the owner to continue to use the cheap and on-hand plastic factory magazines. Using this floorplate removes the insert jamming often experienced. This is a drop in fit - no modifications required - just minutes to install. Uses the factory screws. Note, this floorplate has a built-in shrouded mag release to avoid accidental mag drops. Also, the release shroud can act as an underside barricate stop. Note, the mag well has an very oversized bottom entry flange for fast magazine inserting.PN: 1023, Price A$175ea. SOLD OUT. ETA MARCH 2025. PLEASE EMAIL TO JOIN NOTIFY LIST. Weight: 80g / 2.8oz.
=========================================================================================================

Remington 700 Hex Head Cap Screws Take-down Screws (aka action screws). Bottom metal action screws. Black zinc plated, 720 HT. PN: 1043, Price A$5 per set. AVAILABLE NOW.

================================================================================================ ENQUIRIES: e-mail waters rifleman via the contact form on the HOME PAGE...Please simply advise which items you are interested in, how many and your location.Please check your reply email address (all correspondence is via email ONLY)....You’ll then be directed to a distributor that services your region...
