WR ELR Adjustable Sight Base Height Adder

ELR and STEEL Accessories and Target Equipment

=========================================================================================================

GENERATION 2 - WR PRECISION PRO ELR (EXTREME LONG RANGE) ADJUSTABLE BASE SIGHT MOUNT
The Elevation Height Adder used by many top across the course ELR shooters.  There are many limitations for some shooters to get the full ELR experience because they run out of adjustment to make shots at the the farthest distance targets.  No matter the firearm, there is one thing that gets in the way of EVERY setup, and that is getting enough elevation.  If shooting a hot 7mm, or a 50 cal, or anything in between, you need to get elevation.   WR has a rock solid and repeatable solution.  The WR unit is best and simplest to fit and use ELR height adding base for extreme long range sight elevation needs.

The Waters Rifleman WR Pro ELR adjustable base:- Clamps onto the top of your existing rifle picatinny rail.- Accepts your standard pic mount attaching scope rings.
- Integrated recoil lugs.
- Extra long pic rail to give flexibile mounting options.  Can be shortened to suit needs.
- Increases shooter choice of scope options (base provides most the elevation).
- Reduce the wear and tear on your scope with large amounts of retical travel.- A very simple, strong and robust design - repeatable and unbreakable.
- 3 years in development with proven success from around the world.
- Is VERY simple and fast to operate.  Can be adjusted on the fly.- No ridiculous price tag...  Gets you in the game for less, with your current scope.

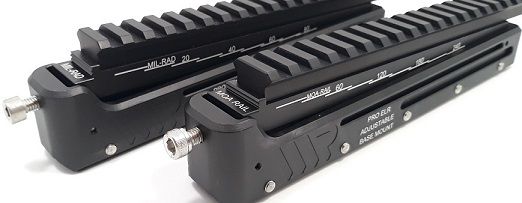

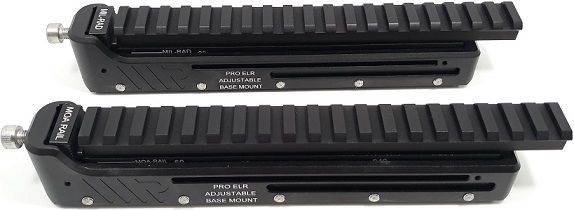

Gen 2 WR Pro ELR Base - 240 MINUTES OF ANGLE
Indexing increments 30, 60, 90, 120, 150, 180, 210, 240 MOA.
PN: 2102,  A$795ea.   AVAILABLE NOW.

Gen 2 WR Pro ELR Base - 80 MIL-RADIndexing increments 10, 20, 30, 40, 50, 60, 70, 80 Mil-Radians.
PN: 2103,  A$795ea.   AVAILABLE NOW.

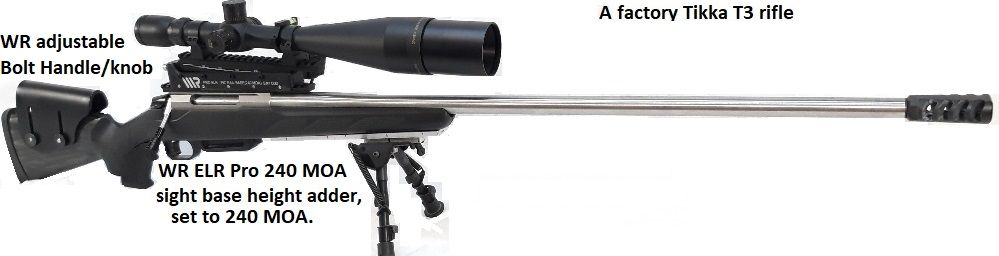

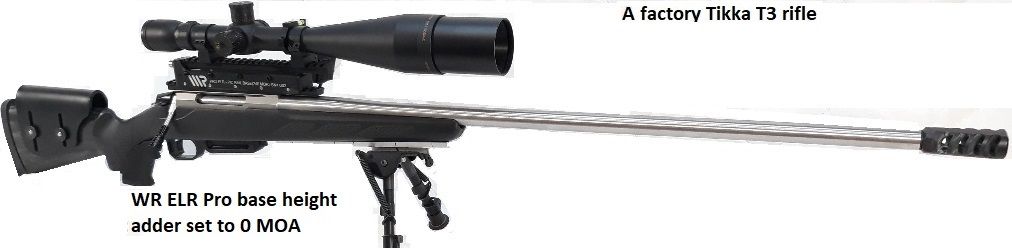

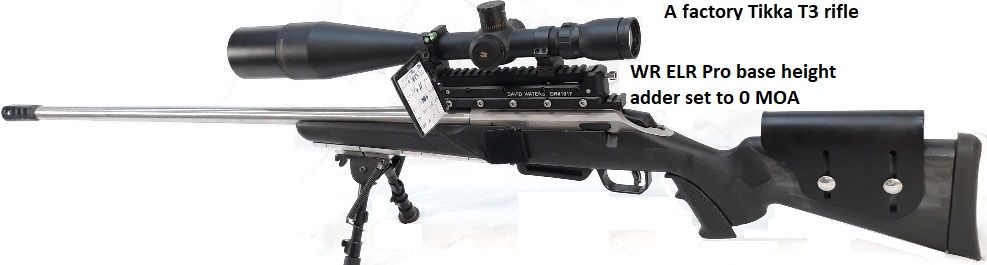

The above and below pictures show a reasonably standard Tikka T3 rifle.  A typical customised factory rifle using a lot of WR additions,
with a serious aftermarket barrel and running the WR Pro ELR adjustable sight base to fit into the Australian "sporter" category.

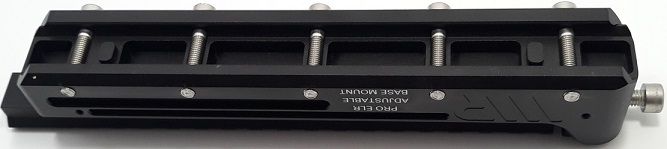

Specs:      - Made of 7075 Alum billet, machined to 0.02mm tolerances.      - Mass 405g / 14.3oz complete, ready to fit and use (FYI, G1: 480g / 16.3oz).      - Body parts finish is black hard anodise.  All SS fasteners.      - MOA unit, increments by 30MOA from 0 to 240MOA.
      - MIL-RAD unit, increments by 10 MIL from 0 to 80 MIL-RAD.
             (Note, Both the MOA and MIL_RAD mounts can go higher, however, it is out of design spec for the mount, and is done by shooter beyond recommendation).      - Height from top of rifle pic rail to top of WR mount pic rail of approx 32mm (1 1/4") to give extra height to see over a typical muzzle brake on longer barrels.      - G2 Picatinny rail is 195mm / 8" long, to allow best fixing of very powerful modern scopes with long tubes.      - 1 single Cap screws at the rear adjusts the whole mount for all elevations.      - Very simple design, simple construction, but bulletproof toughness, hence, not expensive and the best solution for the precision champion shooter.      - 2x Integrated recoil lugs with 5x clamping cross bolts.
      - Bright white laser engraved elevation ladder - very easy to see and align to.
      - Comes with instructions that go beyond the mount but also how to get best results.

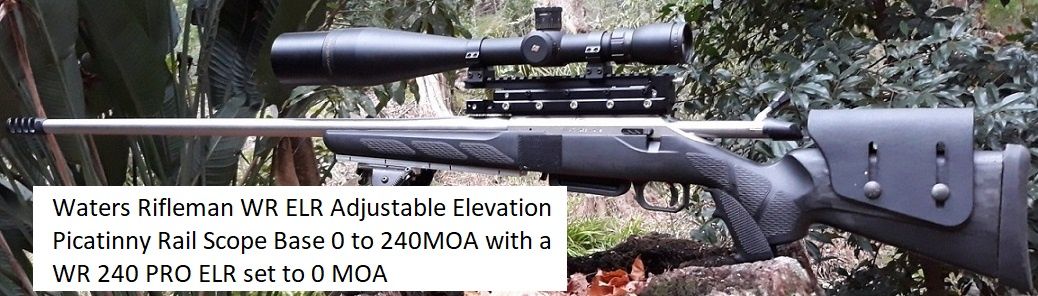

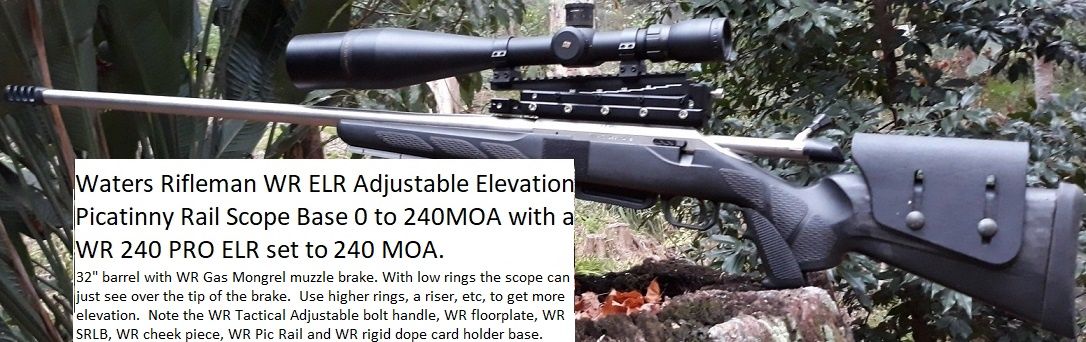

Below 4 images are of an ELR SPORTER CLASS 7mm rifle (Australian rule, under 30 cal, under 13lb) shooting to 2 miles.

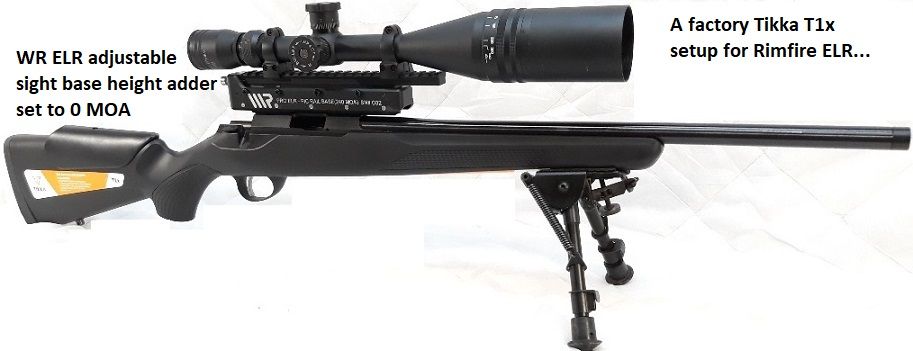

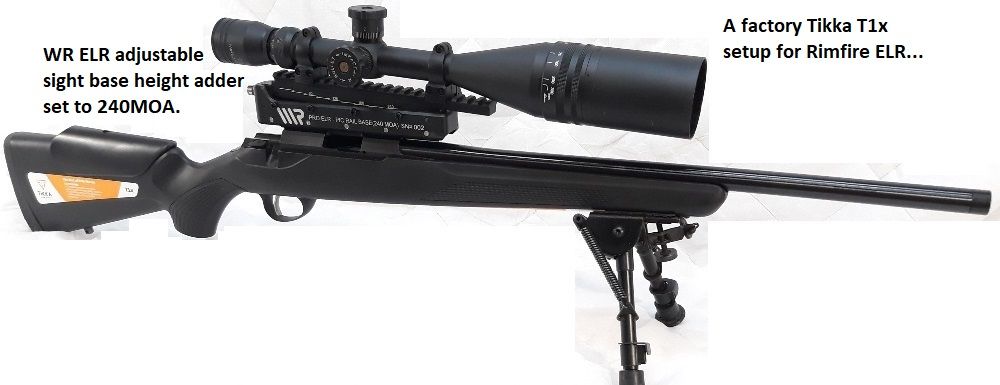

Below 2 images are of an ELR rimfire rifle for the Aus league, shooting to 800 yards.

ENQUIRIES:  e-mail waters rifleman via the contact form on the HOME PAGE...Please simply advise which items you are interested in, how many and your location.Please check your reply email address (all correspondence is via email ONLY)....You’ll then be directed to a distributor that services your region...
