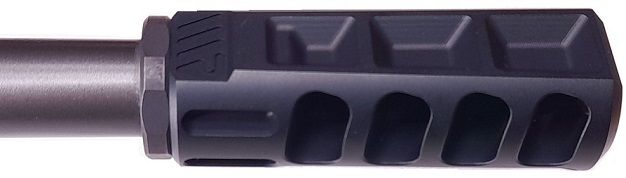

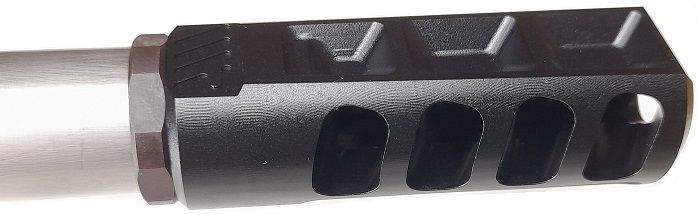

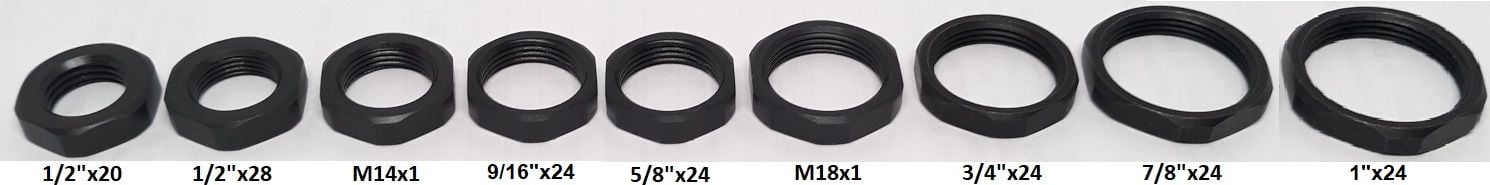

- MUZZLE BRAKE FITTING HARDWARE Note: all brakes should be fitted by and with gunsmith direction, advice and appropriate experience----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----WR MUZZLE BRAKE JAM NUT / HALF NUT / MUZZLE BRAKE LOCK NUT.- STEEL, BLACK FINISH JAM NUTS. AVAILABLE NOWIMPERIAL THREADS - PN 3201, 1/2"x20, 19mm (0.75") across flat. A$7ea.- PN 3202, 1/2"x28, 19mm (0.75") across flat. A$7ea. - PN 3203, 9/16"x24, 19mm (0.75") across flat. A$7ea.- PN 3204, 5/8"x24, 19mm (0.75") across flat. A$7ea. SMALL OD - PN 3205, 5/8"x24, 23mm (0.9") across flat. A$8ea. LARGE OD- PN 3206, 3/4"x24, 23mm (0.9") across flats. A$9ea.- PN 3207, 7/8"x24, 26mm (1.1") across flats). A$9ea. - PN 3208, 1"x24, 29mm (1.14") across flats). A$9ea. METRIC THREADS - PN 3209, M14x1, 19mm (0.75") across flat. A$7ea. - PN 3212, M15x1, 19mm (0.75") across flat. A$7ea. - PN 3210, M18x1, 22mm (0.87") across flats. A$8ea. - PN 3211, M18x1.5, 22mm (0.87") across flats. A$8ea.- JAM NUT - for muzzle brake clocking. - Hex nut, 2 threads deep (apprx 5mm (0.195") thick). - Using a jam nut to clock a brake is the BEST method. NOTE: WR do NOT recommend using the integrated nut method on many brakes is nice and convenient, but due to rigidity and an massive increase in modulus of elasticity.BRAKE FITTING EXAMPLESVarmint barrel with jam nut.Lightweight barrel with jam nut.Using an O-ring, which has some proven harmonic advantages...The O-ring idea pinched up (only). Do not over-tighten...----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----CRUSH WASHER - for brake clocking. Spring Steel. Black finish. only below 4 sizes available: - Imperial IDs 1/2" & 5/8". - Metric IDs M14, M18. All sizes A$9ea. LIMITED STOCK.----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----WR MUZZLE THREAD CAP / MUZZLE THREAD PROTECTOR. Made of very light Aluminium to minimise POI changes during live fire with the cap on or off, and to increase heat sink ability.- Alumininium, HARD black anodised. AVAILABLE NOW IMPERIAL THREADS - PN 3251, 1/2"x20, 16mm (0.63") long, OD 17.5mm (0.69"). A$15ea. - PN 3252, 1/2"x28, 16mm (0.63") long, OD 17.5mm (0.69"). A$15ea. - PN 3253, 9/16"x24, 16mm (0.63") long, OD 18.5mm (0.73"). A$15ea. - PN 3254, 5/8"x24, 16mm (0.63") long, OD 18.5mm (0.73"). A$15ea. - PN 3255, 3/4"x24, 16mm (0.63") long, OD 22.0mm (0.87"). A$18ea. - PN 3256, 7/8"x24, 16mm (0.63") long, OD 25.0mm (0.98"). A$21ea. - PN 3257, 1"x24, 17mm (0.7") long, OD 31.5.0mm (1.24"). A$25ea. METRIC THREADS - PN 3258, M14x1, 16mm (0.63") long, OD 18.0mm (0.71"). A$15ea. - PN 3261, M15x1, 16mm (0.63") long, OD 18.0mm (0.71"). A$15ea. - PN 3259, M18x1, 16mm (0.63") long, OD 21.0mm (0.83"). A$17ea. - PN 3260, M18x1.5, 16mm (0.63") long, OD 21.0mm (0.83"). A$17ea.- Made out of lightweight aluminium with over-size surface area to increase heat sink ability. - Keeps the barrel muzzle cooler thanks to Aluminium thermal properties. - Freebore portion to make screwing on and off much quicker. - Appropriate gripping area to better assist finger tightening.================================================================================================ ENQUIRIES: e-mail waters rifleman via the contact form on the HOME PAGE...Please simply advise which items you are interested in, how many and your location.Please check your reply email address (all correspondence is via email ONLY)....You’ll then be directed to a distributor that services your region...
