WR PRECISION PICATINNY RIFLE SIGHT RAILS - T3 / T3x / CTR / TAC-A1 / UPR / ARCTIC*ALL WR T3/T3x/CTR/TAC-A1/Arctic etc rails precision machined straight with very tight tolerances. *ALL WR T3/T3x rails USE A "STEEL" RECOIL PIN (a feature most other makers neglect or use an alum pin (weak)). *ALL WR pic rails come with 6-48 black high tensile Torx 15 socket mounting screws.
Design: Picatinny Rail Mil-spec cross slots full length of rail. Low profile. Lightening slot thru top middle of rails keeping weight down. Material: Made from 7075 billet aluminium. Finish: Matt Black Hard Type III Anodise finish. Torque: 19-21 in-lb or 1.6-1.8 ft-lb or 2.25Nm

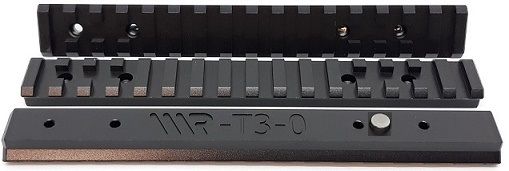

DESIGNED FOR T3 T3x CTR TAC-A1 UPR ARCTIC Steel recoil pin. PN: 2011, 165 0MOA. A$109ea. AVAILABLE NOW. PN: 2012, 165 10MOA. A$109ea. AVAILABLE NOW. PN: 2013, 165 20MOA. A$109ea. AVAILABLE NOW. PN: 2014, 165 30MOA. A$109ea. AVAILABLE NOW. A regular design rail for the typical rifle and typcial sporting scope. This rail fits the length of the receiver only, and is ULTRA thin to make the rail weigh only 55g (2oz) with the steel recoil pin. The best picatinny T3 family rail on the market.

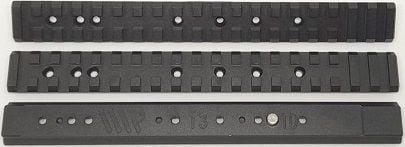

DESIGNED FOR T3 T3x CTR TAC-A1 UPR ARCTIC Steel recoil pin. PN: 2021, 195 0MOA. A$121ea. AVAILABLE NOW. PN: 2022, 195 10MOA. A$121ea. AVAILABLE NOW. PN: 2023, 195 20MOA. A$121ea. AVAILABLE NOW. PN: 2024, 195 30MOA. A$121ea. SOLD OUT. ETA AUGUST 2025 A very long rail for the modern long scopes to allow a more sturdy mount spacing between rings. Yes, this 1 rail will fit all the T3 variants - just cut to length for those T3 rifles that have pic rail fixtures (eg. the Tikka Arctic rear sight).
=================================================================================================================
WR PRECISION PICATINNY RIFLE SIGHT RAILS - T1x *ALL WR T1x rails have a contoured base to hug the top of the T1x receiver (ie. the T1x rail base is not flat like the T3 rail base) to ensure maximum resonance dampening between rifle and sight solution. That is why the WR product is the BEST.*ALL WR T1x pic rails come with 6-48 black high tensile Torx 15 socket mounting screws. *ALL WR T1x rails are bi-ported for LH and RH receivers... with clearing chamfers over the ejection port for finger feeding single rounds.

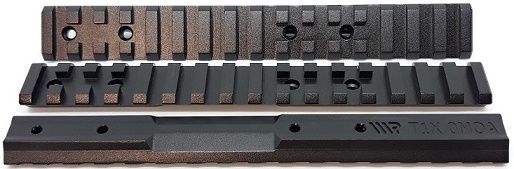

PN: 2041, T1x 165 0MOA. A$111ea. AVAILABLE NOW. PN: 2042, T1x 165 10MOA. A$114ea. AVAILABLE NOW.PN: 2043, T1x 165 20MOA. A$114ea. AVAILABLE NOW.PN: 2044, T1x 165 30MOA. A$117ea. AVAILABLE NOW.

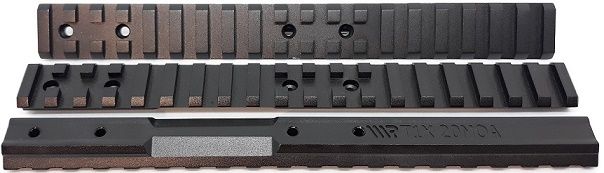

PN: 2051, T1x 195 0MOA. A$117ea. OBSOLETE.PN: 2052, T1x 195 10MOA. OBSOLETE.PN: 2053, T1x 195 20MOA. A$119ea.OBSOLETE.PN: 2054, T1x 195 30MOA. OBSOLETE.

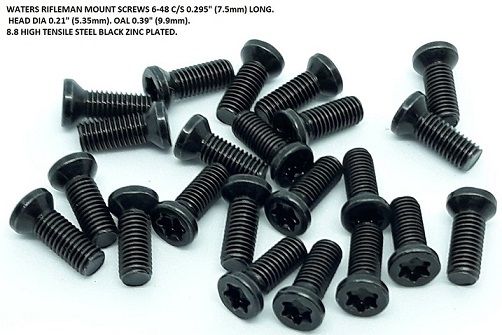

=========================================================================================================BASE & MOUNT 6-48 GUNSMITH SCREWS, T15.
- 6-48 UNEF( #6 x 48 tpi).- 8.8 high tensile steel.- Finished in a rich black zinc coating to help prevent rust.- Countersunk C/S head.- T15 Torx socket (T15 for strength of both tightening and the tool life).- OAL 9.85mm / 0.39”. Thread length 7.4mm / 0.29”.AVAILABLE NOW. Price: - PN: 2061, 1x A$1.20ea. - PN: 2062, A$7 Handy pack of 6. - PN: 2063, A$10 Gunsmith pack of 10. Note: Larger quantities available on enquiry (POA).
=========================================================================================================BASE & MOUNT SAKO QUAD OPTILOCK GUNSMITH SCREWS and compatible.
- 6.8 tensile steel.- Finished in a rich black zinc coating to help prevent rust.- Socket Cap head screw.- Thread length 8mm / 0.315”. Overall length approx 12mm / 0.472".AVAILABLE NOW. Price: - PN: 2065, 1x A$1.00ea. - PN: 2066, A$5 Handy pack of 6. - PN: 2067, A$8 Gunsmith pack of 10. Note: Larger quantities available on enquiry (POA).

================================================================================================ ENQUIRIES: e-mail waters rifleman via the contact form on the HOME PAGE...Please simply advise which items you are interested in, how many and your location.Please check your reply email address (all correspondence is via email ONLY)....You’ll then be directed to a distributor that services your region...
