WR TIKKA CTR TAC-A1 UPR MTR SAKO TRG
AFTERMARKET REPLACEMENT MAGAZINE SOLUTIONS
.jpg)
=================================================================================================
So many rifle owners want the reliability and strength of a metal magazine for their rifle. But now days, they want more - larger capacity, longer OAL and long wearing. AND, they don't want to make modifications to obtain their needs. Waters Rifleman may be able to help...allowing shooters to achieve a complete magazine solution. - Many solutions and designs are drop in fit, meaning no modification require (refer to each instance for confirmation on this). - Made of light weight aircraft grade billet aluminium. - Many solutions and designs are drop in fit, meaning no modification require (refer to each instance for confirmation on this). - Made of light weight aircraft grade billet aluminium, hard black anodised (not regular decorative anodise) finish (may be some variation in colour from batch to batch). - Can be disassembled for easy cleaning and maintenance (recommended). - Reliable tempered Stainless Steel coil spring activating a POM injection moulded OR an or ABS printed follower. - Deep side wall followers to reduce tipping and jamming (stove piping) and increase reliability. - Extended length internals (where possible) to allow longer rounds with longer bullets or bullets seated out further (eg. 223 loading 80 grain projectiles out to the lands). NOTE: While not specifically necessary, we do recommend a light application of dry lube be applied after cleaning to ensure longevity and the best possible operation.
FIT & FUNCTION: These magazines are made for the fastidious shooter that wants the BEST match grade AND MATCH WINNING magazine available. Likewise, shooters of the Waters Rifleman mags are expected to have a basic understanding of how magazines work - understanding tolerances, temperature change, round stacking geometry, etc. This is precision equipment, and precision equipment should be maintained. Click here for WR MAGAZNIE ASSEMBLY and MAINTENANCE USER GUIDE.. Click here for. Click here for WR MAGAZNIE ASSEMBLY and MAINTENANCE USER GUIDE.
DOESN'T FIT. There have been the odd occasion where a shooter magazine will not latching/clicking in place easily. We believe this is due to an intolerance of the rifle stock during moulding, or possibly swelling from moisture, or by over tightening of the stock take-down screws, or a number of other things. Also, some shooters are bedding their receivers, which increases the receiver height from the floor of the stock. Our mags are made to factory spec plus or minus 0.1mm, and from billet aluminium that won't suffer post machining change, Click here for WR MAGAZINE ASSEMBLY and MAINTENANCE USER GUIDE.
TIGHT IS BEST: Ensuring a tight and solid fit keeps your repeater rifle close in performance as a bolt action single shot rifle. Tight and solid assembly and fixing keeps harmonic vibration even through the whole rifle system, and helps dampen the vibration quicker and minimise vibration intensity spots.
MARKING AND SACRIFICE: This magazine is made of metal. Metal on metal will always result in witness marks. Use of the WR mag will result in witness marks on the aluminium magazine body. This is always going to happen, and is preferred to protect undue wear in the more expensive rifle receiver. The sacrificial wear areas are the front latch tang, rear top flat where mating the trigger front tension leaf spring, and the top rear pivot corners. Witness marks can be marked over with black.
FIT & FUNCTION: These magazines are made for the fastidious shooter that wants the BEST match grade AND MATCH WINNING magazine available. Likewise, shooters of the Waters Rifleman mags are expected to have a basic understanding of how magazines work - understanding tolerances, temperature change, round stacking geometry, etc. This is precision equipment, and precision equipment should be maintained. Click here for WR MAGAZNIE ASSEMBLY and MAINTENANCE USER GUIDE.. Click here for. Click here for WR MAGAZNIE ASSEMBLY and MAINTENANCE USER GUIDE.
DOESN'T FIT. There have been the odd occasion where a shooter magazine will not latching/clicking in place easily. We believe this is due to an intolerance of the rifle stock during moulding, or possibly swelling from moisture, or by over tightening of the stock take-down screws, or a number of other things. Also, some shooters are bedding their receivers, which increases the receiver height from the floor of the stock. Our mags are made to factory spec plus or minus 0.1mm, and from billet aluminium that won't suffer post machining change, Click here for WR MAGAZINE ASSEMBLY and MAINTENANCE USER GUIDE.
TIGHT IS BEST: Ensuring a tight and solid fit keeps your repeater rifle close in performance as a bolt action single shot rifle. Tight and solid assembly and fixing keeps harmonic vibration even through the whole rifle system, and helps dampen the vibration quicker and minimise vibration intensity spots.
MARKING AND SACRIFICE: This magazine is made of metal. Metal on metal will always result in witness marks. Use of the WR mag will result in witness marks on the aluminium magazine body. This is always going to happen, and is preferred to protect undue wear in the more expensive rifle receiver. The sacrificial wear areas are the front latch tang, rear top flat where mating the trigger front tension leaf spring, and the top rear pivot corners. Witness marks can be marked over with black.
============================================================================================================
TIKKA CTR / TIKKA UPR / TIKKA TAC-A1 / TIKKA ACRTIC / TIKKA MTR / SAKO TRG
============================================================================================================

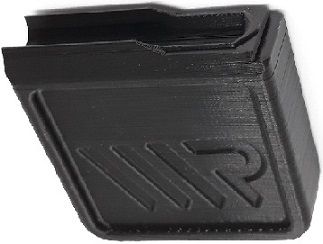

WR SINGLE ROUND LOADING BLOCK (SLRB)
aka SINGLE SHOT BLOCK, aka SLED- TIKKA CTR - TIKKA UPR - TIKKA TAC-A1 - SAKO TRG 22 (SHORT and MEDIUM ACTION)
PN: 0105, FDM print PLA version, A$20ea. AVAILABLE NOW.
One size fits all cartridges. Used to conveniently load and shoot 1 round at a time.Turns your repeating Tikka into a single shot to reduce risk of bullet tip damage to get the best ballistics and accurancy out of your rifle.Use while storing or cleaning to help prevent objects entering the mag well.
===========================================================================================================
WR MAGAZINE - 223 based - Both 2.4" OAL & 2.6" OAL 10 shot CTR mags 140grams (4.94 Oz) - DSSF. - Tikka T3 CTR - Tikka T3 TAC A1
The Factory CTR mags sometimes suffer feeding reliability issues and rattle. WR unit is designed for reliable feeding and for loading longer VLD type rounds.
.jpg "WR Tikka CTR TAC-A1 Mag 223 10R 2.4\"")

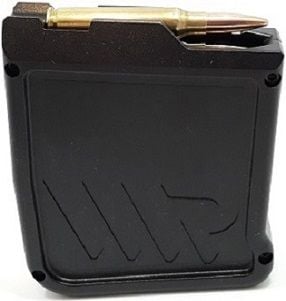

WR Tikka CTR / TAC A1 223 10R 2.4" OAL.
Increased Overall Load Length (OAL).
Best used for factory 2.26" OAL rounds.
Suitable for 17 Rem, 204, 222 Rem.
PN: 0101, A$180ea.
AVAILABLE NOW.
.jpg "WR Tikka CTR TAC-A1 Mag 223 10R 2.6\"")

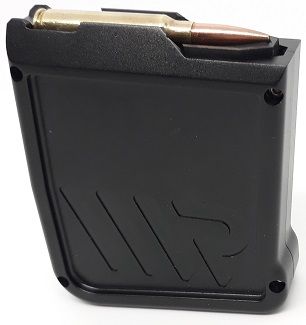

WR Tikka CTR / TAC A1 223 10R 2.6" OAL.Increased Overall Load Length (OAL).Best used for long VLD type custom target loads.
Long 223, 222 Rem Mag, 6x47(222mag).
PN: 0102, A$180ea.
AVAILABLE NOW.

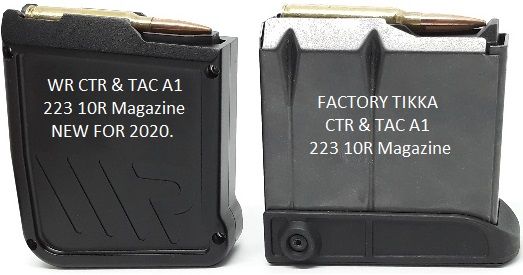

SIZE COMPARISON.
WR physically smaller than Factory.
WR CTR TACA1 on the left, side by side with factory CTR unit on the right.
CTR and TAC-A1 factory magazines are known for excessive rattle in the rifle. The WR magazine is deliberately made with the latch slot deeper so the WR mag fits the rifle with no or less rattle. The WR mag is simply and easily tailorable for a neat fit.
============================================================================================================
WR MAGAZINE - 6BR and similar geometry cartridges - DSSF - 2.6" OAL- TIKKA CTR - TIKKA UPR - TIKKA TAC-A1 - TIKKA ARCTIC - SAKO TRG 22
This is a new purpose built Tikka CTR based magazine for the CTR family of systems.
Machined from billet aircraft grade aluminium. Hard Black anodised finish. No more plastic mag issues.- Suits 6mm BR, 6BR, BRX and similar SAAMI spec rounds...such as 6GT. Max 10 rounds.- Also suits 22-250 and family of 250 taperd cartridges and similar SAAMI rounds. Limited to 9 rounds.YES, both the BR and 250 cartridges fit this same magazine. Min round OAL is 2.1".
- WR AICS BR 10 shot PN: 0106BR, A$195ea. AVAILABLE NOW. 175gr (6.17oz), 2.6" (66mm). - WR AICS 22-250 10 shot PN: 0106TF, A$195ea. AVAILABLE NOW. 175gr (6.17oz) 2.6" (66mm).
============================================================================================================
WR MAGAZINE - 308 Win based - DSSF
- TIKKA CTR - TIKKA UPR - TIKKA TAC-A1 - TIKKA ARCTIC - SAKO TRG 22
CTR/UPR-TAC-A1/TRG-22 308 10 shot.PN: 0103, A$195ea.
AVAILABLE NOW.
Drop in fit - No Mods.
Overall Load Length (OAL) max to approx 74.3mm (2.924").
Mass approx 165 grams (5.82 Oz).
This magazine has been designed for use with 308 cases, and all family of cartridges, 6XC, 6x47 Lapua, 243 Win, 6.5 Creedmoor, 260 Rem, 7mm-08 Rem, 308 Win.
Note: Tapered cartridges such as 6.5x55 will NOT work in this 308 base magazine.

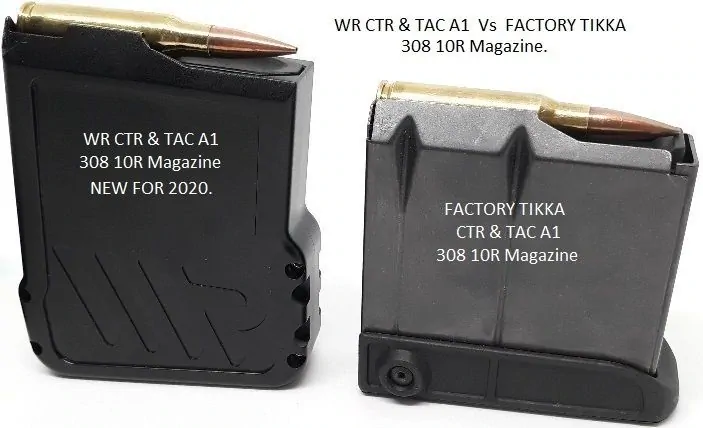

SIZE COMPARISON ONLY.
WR CTR left, factory CTR right.
WR 20mm+ deeper than Factory.
==========================================================================================================================

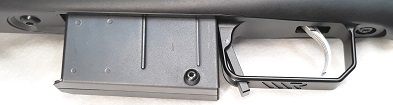

WR TIKKA CTR / UPR / ARCTIC TACTICAL FLOORPLATE BOTTOM METAL (DBM) TRIGGER GUARD (expandable and tactical)New for 2022 - A truly “tactical” bottom metal, trigger guard DBM floorplate to suit the TIKKA CTR, TIKKA UPR and TIKKA ACRTIC rifles and continues to accept the CTR, TRG, TAC-A1, UPR compact SA detachable magazine varieties. Like the WR T3x Floorplate, this accepts the bolt on the WR bottom pic rail for tactical and practical applications and accessories. No modifications to your CTR/UPR/ARCTIC stock (DROP IN FIT). PN: 1014. SOLD OUT. ETA TBA. Weight: 95 grams (3.35oz). *** COMING SOON. UPDATED CTR BOTTOM METAL TO AICS SA CONVERSION REDESIGN. ETA DEC 2023 ***
QUICK RELEASE... Note the mag release lever inside the trigger guard. Allows for quick mag change - pull the trigger, then press forward to release the mag.
QUICK LOADING... Note the extra large lead-in chamfer into the mag well.
.jpg "WR Tikka CTR DBM")
.jpg "Tikka TAC-A1 bottom metal")
.jpg "WR Tikka CTR Bottom Metal")
.jpg "Tikka UPR Arctic bottom metal floorplate")

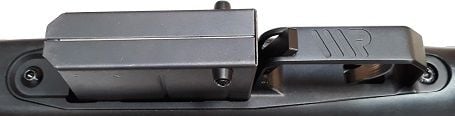

Above is the WR CTR bottom metal with the WR tacticalbottom accessory picatinny rail attached.
==========================================================================================================================
CTR to AICS SA MAG conversion DBMWR TIKKA CTR / UPR / ARCTIC TACTICAL FLOORPLATE BOTTOM METAL (DBM) TRIGGER GUARD (expandable and tactical)A truly “tactical” bottom metal, trigger guard DBM floorplate to suit the TIKKA CTR, TIKKA UPR and TIKKA ACRTIC rifles and continues to accept the AI/AICS SA detachable magazine varieties. No modifications to your CTR/UPR/ARCTIC stock (DROP IN FIT). PN: 1015, Price A$165ea. AVAILABLE NOW. Weight: 95 grams (3.35oz).Like the other WR T3 floorplates, this bottom metal is also “tactical” ready for the WR bolt on Picatinny Rail (PN 4011) and WR Tee wing ad-on (PN 4022).
==========================================================================================================================
ENQUIRIES: e-mail waters rifleman via the contact form on the HOME PAGE...Please simply advise which items you are interested in, how many and your location.Please check your reply email address (all correspondence is via email ONLY)....You’ll then be directed to a distributor that services your region...
