TIKKA M55 / ITHACA LSA55 - Tikka M76 - TIKKA M65 / ITHACA LSA65 - Tikka 595 / 695
AFTERMARKET REPLACEMENT TIKKA MAG SOLUTIONS FOR OLDER MODELS
=================================================
.jpg)
THIS PAGE IS OBSOLETE. TO RETURN TO HOME CLICK HERE..
OR
FOR TIKKA M55 M76 / ITHICA LSA55 - PLEASE SEE THIS PAGE: CLICK HERE
FOR TIKKA M65 / ITHICA LSA65 - PLEASE SEE THIS PAGE: CLICK HERE
FOR TIKKA M65 / ITHICA LSA65 - PLEASE SEE THIS PAGE: CLICK HERE
FOR TIKKA 590 and 595 - PLEASE SEE THIS PAGE: CLICK HERE
FOR TIKKA 690 and 695 - PLEASE SEE THIS PAGE: CLICK HERE
So many rifle owners want the reliability and strength of a metal magazine for their rifle. But now days, they want more - larger capacity, longer OAL and long wearing. AND, they don't want to make modifications to obtain their needs. Waters Rifleman may be able to help...allowing shooters to achieve a complete magazine solution. - Many solutions and designs are drop in fit, meaning no modification require (refer to each instance for confirmation on this). - Made of light weight aircraft grade billet aluminium, hard black anodised (not regular decorative anodise) finish (may be some variation in colour from batch to batch). - Can be disassembled for easy cleaning and maintenance (recommended). - Reliable tempered Stainless Steel coil spring activating a POM injection moulded OR an or ABS printed follower. - Deep side wall followers to reduce tipping and jamming (stove piping) and increase reliability. - Extended length internals (where possible) to allow longer rounds with longer bullets or bullets seated out further (eg. 223 loading 80 grain projectiles out to the lands). NOTE: While not specifically necessary, we do recommend a light application of dry lube be applied after cleaning to ensure longevity and the best possible operation.
FIT & FUNCTION: These magazines are made for the fastidious shooter that wants the BEST match grade AND MATCH WINNING magazine available. Likewise, shooters of the Waters Rifleman mags are expected to have a basic understanding of how magazines work - understanding tolerances, temperature change, round stacking geometry, etc. This is precision equipment, and precision equipment should be maintained. Click here for WR MAGAZNIE ASSEMBLY and MAINTENANCE USER GUIDE.. Click here for WR MAGAZNIE ASSEMBLY and MAINTENANCE USER GUIDE.
DOESN'T FIT. There have been the odd occasion where a shooter magazine will not latching/clicking in place easily. We believe this is due to an intolerance of the rifle stock during moulding, or possibly swelling from moisture, or by over tightening of the stock take-down screws, or a number of other things. Also, some shooters are bedding their receivers, which increases the receiver height from the floor of the stock. Our mags are made to factory spec plus or minus 0.1mm, and from billet aluminium that won't suffer post machining change, Click here for WR MAGAZINE ASSEMBLY and MAINTENANCE USER GUIDE.
TIGHT IS BEST: Ensuring a tight and solid fit keeps your repeater rifle close in performance as a bolt action single shot rifle. Tight and solid assembly and fixing keeps harmonic vibration even through the whole rifle system, and helps dampen the vibration quicker and minimise vibration intensity spots..
MARKING AND SACRIFICE: WR magazines are made of metal. Metal on metal will always result in witness marks. Use of the WR mag will result in witness marks on the aluminium magazine body. This is always going to happen, and is preferred to protect undue wear in the more expensive rifle receiver. The sacrificial wear areas are the front latch tang, rear top flat where mating the trigger front tension leaf spring, and the top rear pivot corners. Witness marks can be marked over with black.
FIT & FUNCTION: These magazines are made for the fastidious shooter that wants the BEST match grade AND MATCH WINNING magazine available. Likewise, shooters of the Waters Rifleman mags are expected to have a basic understanding of how magazines work - understanding tolerances, temperature change, round stacking geometry, etc. This is precision equipment, and precision equipment should be maintained. Click here for WR MAGAZNIE ASSEMBLY and MAINTENANCE USER GUIDE.. Click here for WR MAGAZNIE ASSEMBLY and MAINTENANCE USER GUIDE.
DOESN'T FIT. There have been the odd occasion where a shooter magazine will not latching/clicking in place easily. We believe this is due to an intolerance of the rifle stock during moulding, or possibly swelling from moisture, or by over tightening of the stock take-down screws, or a number of other things. Also, some shooters are bedding their receivers, which increases the receiver height from the floor of the stock. Our mags are made to factory spec plus or minus 0.1mm, and from billet aluminium that won't suffer post machining change, Click here for WR MAGAZINE ASSEMBLY and MAINTENANCE USER GUIDE.
TIGHT IS BEST: Ensuring a tight and solid fit keeps your repeater rifle close in performance as a bolt action single shot rifle. Tight and solid assembly and fixing keeps harmonic vibration even through the whole rifle system, and helps dampen the vibration quicker and minimise vibration intensity spots..
MARKING AND SACRIFICE: WR magazines are made of metal. Metal on metal will always result in witness marks. Use of the WR mag will result in witness marks on the aluminium magazine body. This is always going to happen, and is preferred to protect undue wear in the more expensive rifle receiver. The sacrificial wear areas are the front latch tang, rear top flat where mating the trigger front tension leaf spring, and the top rear pivot corners. Witness marks can be marked over with black.
==============================================================================
TIKKA M55 / ITHACA LSA55 / TIKKA M76
WR TIKKA M55 / ITHACA LSA55 / M76 Magazine. Made from aluminium billet. Fully machined. Hard Black Anodised Finish.

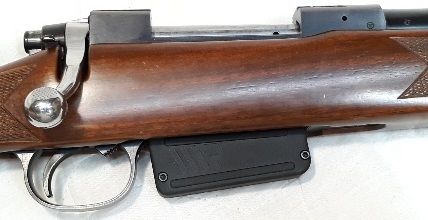

Tikka M55 LSA55 rifle with the WR M55 223 6R magazine inserted.
PN: 0281, 223 Base. 6 Shot. A$225ea. LOW STOCK.Suitable for factory 17 Rem, 222 and 223.
Overall round length of 62mm (2.44").
Mass 70 grams (2.44 Oz)

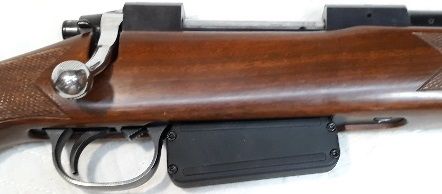

Tikka M55 LSA55 rifle with the WR M55 308 5R magazine inserted.
PN: 0282, 308 Base. 5 Shot. A$225ea. AVAILABLE NOW.Suitable for factory 22-250, 243, 6mm Rem, 308 Win.
- Overall round length of 73mm (2.87").
- Mass 75 grams (2.44 Oz)

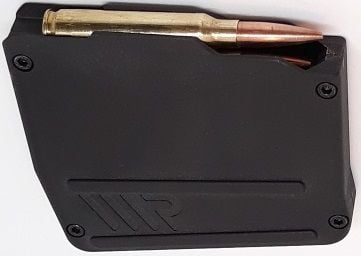

Pic shows 6R 223 Rem.

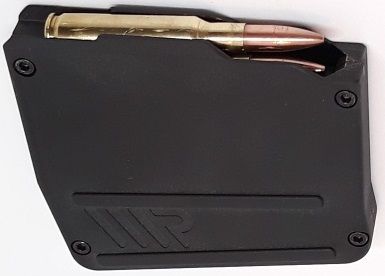

Pic shows 6R 222 Rem.

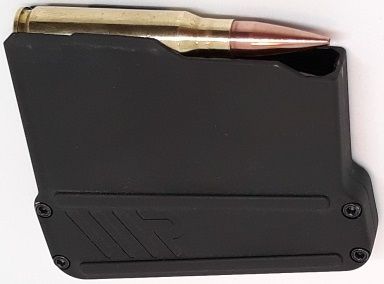

Pic shows 5R 308 Win.

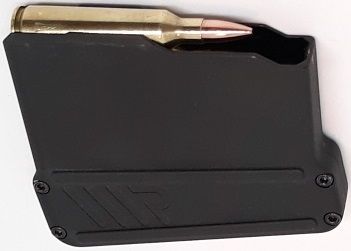

Pic shows 5R 22-250
TIKKA M55 LSA55
Single Shot Block (SRLB).
1 size fits all M55 LSA55.
FDM ABS only.
PN: 0283, A$20ea. AVAILABLE NOW.
==============================================================================TIKKA M65 / ITHACA LSA65
Made to fit the broad variances of the Tikka M65 range is this WR magazine in true double stack design.
Purpose built M65 metal magazine made out of aluminium billet and hard black anodised.
.jpg "Tikka M65 magazine 25-06 270 Win 7x64 308 30-06 9.3x62 7 round")

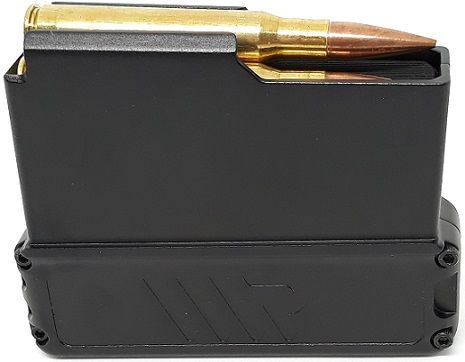

WR M65 / ITHICA LSA 65 Magazine - 7 round for:
25-06, 270 Win, 7x64, 308, 30-06, 9.3x62PN: 0286, A$265ea. AVAILABLE NOW.Overall round length of 87mm (3.42").
Mass 120 grams (4.23 Oz)

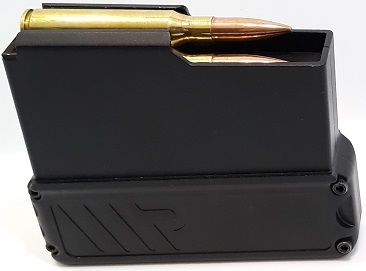

WR M65 / ITHICA LSA 65 Magazine - 7 round for:6.5x55 SE, 7x57 and similar tapered cartridges.PN: 0285, A$265ea. AVAILABLE NOW.Overall round length of 87mm (3.42").
Mass 120 grams (4.23 Oz)

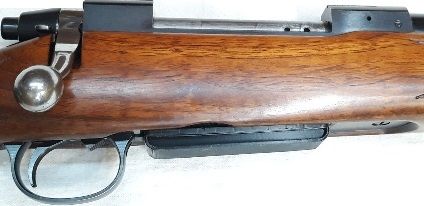

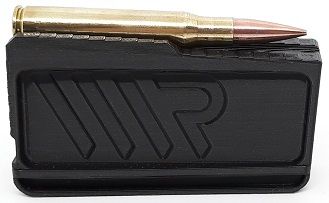

- TIKKA M65 / ITHICA LSA65 Single Round Loading Block.
aka Single Shot Block. aka Sled.
3006 base size. 1 size fits all cartridges.
FDM print ABS version ONLY.
PN: 0287, A$30ea. AVAILABLE NOW.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

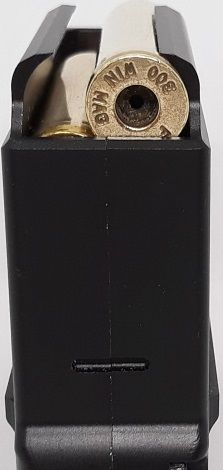

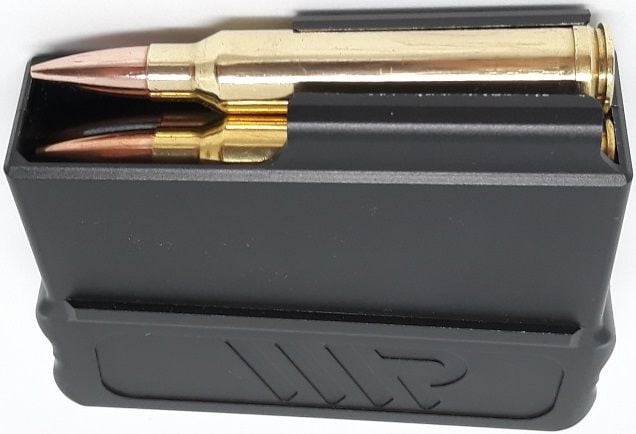

TIKKA M65 MAGNUM / ITHACA LSA65 MAGNUM
WR M65 / ITHICA LAS 65
TIKKA MAGNUM MAGAZINE
NOTE: This is specifcally for the 65 magnum rifle,
not for a standard long action M65. Please check.
7 Shot mag for:
7mm Remington Magnum,
300 Winchester Magnum,
338 Winchester Magnum.
PN: 0288, A$275ea.
AVAILABLE NOW. LOW STOCK.
Mass 120 grams (4.23 Oz)
Double stack metal magazine specically made
for the belted magnum cartridges.
TIKKA M65 / ITHICA LSA65 MAGNUM Single Round Loading Block.aka Single Shot Block. aka Sled.7mm RM, 300WM, 338WM base size. 1 size fits all cartridges. FDM print ABS version ONLY. PN: 0289, A$30ea. AVAILABLE NOW.
==============================================================================
TIKKA 590 / 595

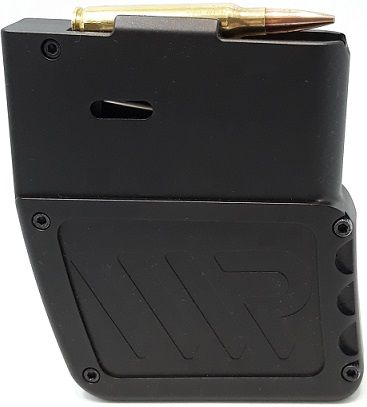

TIKKA 595 590 223 Base. 10 Shot,
PN: 0291, A$195ea. AVAILABLE NOW.Suitable for factory 17 Rem, 222 and 223.Overall round length of 62mm (2.44").Mass 120 grams (4.23 Oz)

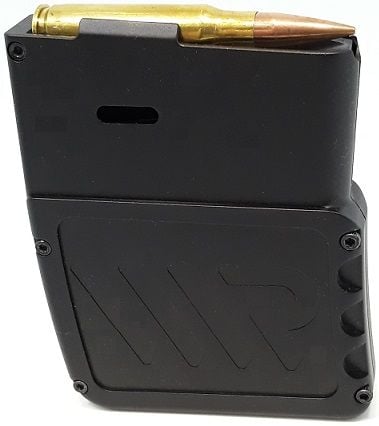

TIKKA 595 590 308 Base. 8 Shot.
PN: 0292, A$210ea. AVAILABLE NOW.
Suitable for factory 22-250, 243, 7mm-08, 308 Win.- Overall round length of 72mm (2.83").- Mass 100 grams (3.53 Oz)
.jpg "WR Magazine Tikka 595 single round loading block all cartridges")
WR SINGLE ROUND LOADING BLOCK (SLRB)
(aka SINGLE SHOT BLOCK. aka SLED)- TIKKA 595 SHORT ACTION 223, 243, 308, etc.
FDM SRLB PRINT ABS version ONLY.
PN: 0293, A$20ea AVAILABLE NOW.
One size fits all cartridges. Used to conveniently shoot 1 round at a time.Turns your repeating Tikka into a single shot for easy feeding.Use while cleaning to stop objects falling into the mag well.
==============================================================================TIKKA 690/ 695
The same single magazine is suitable for all long action cartridges:
WR TIKKA 695 8 round - 25-06 Rem, 270 Win, 30-06, 9.3x62WR TIKKA 695 7 round - 7x64, 7 mm Rem Mag, 300 Win Mag, 338 Win Mag
PN: 0297, A$215ea. AVAILABLE NOW.Overall round length of 87mm (3.42").Mass 140 grams (4.94 Oz)

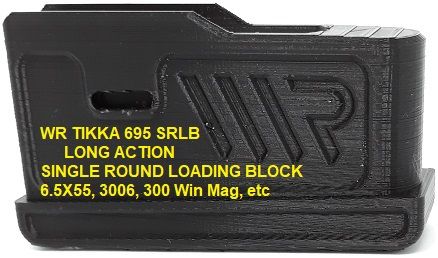

WR TIKKA 695 SINGLE ROUND LOADING BLOCK (SLRB)(aka SINGLE SHOT BLOCK. aka SLED) suitable for:25-06 Rem, 6.5x55 SE, 270 Win, 7x64, 30-06, 9.3x62
7 mm Rem Mag, 300 Win Mag, 338 Win Mag
PN: 0298, FDM SRLB PRINT ABS A$20ea AVAILABLE NOW.
One size fits all cartridges. Used to conveniently shoot 1 round at a time.Turns your repeating Tikka into a single shot for easy feeding.Use while cleaning to stop objects falling into the mag well.
==========================================================================================================================
ENQUIRIES: e-mail waters rifleman via the contact form on the HOME PAGE...Please simply advise which items you are interested in, how many and your location.Please check your reply email address (all correspondence is via email ONLY)....You’ll then be directed to a distributor that services your region...
