VERNEY CARRON
SPEEDLINE / IMPACT LA / LINERGY
AFTERMARKET REPLACEMENT WR MAGAZINE SOLUTIONS
.jpg&height=28)
=================================================================================================
So many rifle owners want the reliability and strength of a metal magazine for their rifle. But now days, they want more - larger capacity, longer OAL and long wearing. AND, they don't want to make modifications to obtain their needs. Waters Rifleman may be able to help...allowing shooters to achieve a complete magazine solution. - Many solutions and designs are drop in fit, meaning no modification require (refer to each instance for confirmation on this). - Made of light weight aircraft grade billet aluminium, hard black anodised (not regular decorative anodise) finish (may be some variation in colour from batch to batch). - Can be disassembled for easy cleaning and maintenance (recommended). - Reliable tempered Stainless Steel coil spring activating a POM injection moulded OR an or ABS printed follower. - Deep side wall followers to reduce tipping and jamming (stove piping) and increase reliability. - Extended length internals (where possible) to allow longer rounds with longer bullets or bullets seated out further (eg. 223 loading 80 grain projectiles out to the lands).
FIT & FUNCTION: These magazines are made for the fastidious shooter that wants the BEST match grade AND MATCH WINNING magazine available. Likewise, shooters of the Waters Rifleman mags are expected to have a basic understanding of how magazines work - understanding tolerances, temperature change, round stacking geometry, etc. This is precision equipment, and precision equipment should be maintained. Click here for WR MAGAZNIE ASSEMBLY and MAINTENANCE USER GUIDE.
DOESN'T FIT. There have been the odd occasion where a shooter magazine will not latching/clicking in place easily. We believe this is due to an intolerance of the rifle stock during moulding, or possibly swelling from moisture, or by over tightening of the stock take-down screws, or a number of other things. Also, some shooters are bedding their receivers, which increases the receiver height from the floor of the stock. Our mags are made to factory spec plus or minus 0.1mm, and from billet aluminium that won't suffer post machining change. If the magazine is too tight to latch, Click here for WR MAGAZINE ASSEMBLY and MAINTENANCE USER GUIDE.
TIGHT IS BEST: Ensuring a tight and solid fit keeps your repeater rifle close in performance as a bolt action single shot rifle. Tight and solid assembly and fixing keeps harmonic vibration even through the whole rifle system, and helps dampen the vibration quicker and minimise vibration intensity spots.
MARKING AND SACRIFICE: WR magazines are made of metal. Metal on metal will always result in witness marks. Use of the WR mag will result in witness marks on the aluminium magazine body. This is always going to happen, and is preferred to protect undue wear in the more expensive rifle receiver. The sacrificial wear areas are the front latch tang, rear top flat where mating the trigger front tension leaf spring, and the top rear pivot corners. Witness marks can be marked over with black.
FIT & FUNCTION: These magazines are made for the fastidious shooter that wants the BEST match grade AND MATCH WINNING magazine available. Likewise, shooters of the Waters Rifleman mags are expected to have a basic understanding of how magazines work - understanding tolerances, temperature change, round stacking geometry, etc. This is precision equipment, and precision equipment should be maintained. Click here for WR MAGAZNIE ASSEMBLY and MAINTENANCE USER GUIDE.
DOESN'T FIT. There have been the odd occasion where a shooter magazine will not latching/clicking in place easily. We believe this is due to an intolerance of the rifle stock during moulding, or possibly swelling from moisture, or by over tightening of the stock take-down screws, or a number of other things. Also, some shooters are bedding their receivers, which increases the receiver height from the floor of the stock. Our mags are made to factory spec plus or minus 0.1mm, and from billet aluminium that won't suffer post machining change. If the magazine is too tight to latch, Click here for WR MAGAZINE ASSEMBLY and MAINTENANCE USER GUIDE.
TIGHT IS BEST: Ensuring a tight and solid fit keeps your repeater rifle close in performance as a bolt action single shot rifle. Tight and solid assembly and fixing keeps harmonic vibration even through the whole rifle system, and helps dampen the vibration quicker and minimise vibration intensity spots.
MARKING AND SACRIFICE: WR magazines are made of metal. Metal on metal will always result in witness marks. Use of the WR mag will result in witness marks on the aluminium magazine body. This is always going to happen, and is preferred to protect undue wear in the more expensive rifle receiver. The sacrificial wear areas are the front latch tang, rear top flat where mating the trigger front tension leaf spring, and the top rear pivot corners. Witness marks can be marked over with black.
======================================================================================================
VERNEY CARRON SPEEDLINE MAGAZINE
VERNEY CARRON IMPACT LA
VERNEY CARRON LINERGY
This is a retro fit with NO modification aftermarket magazine soluiton for the VC Speedline and Impact LA to allow the charging with up to 10 rounds.
- Machined from billet aircraft grade aluminium.- Black hard anodised surface finish.
- Due to partial side-by-side stacking the depth of the mag is much less than double that of the factory 5 round mag.- All user reports have been exceptionally posiitive.

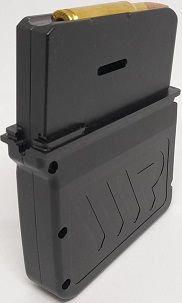

GEN 3 - 308, 30-06 / 7x64 9/10 SHOT 86mm OAL
(pic shows 30.06 case in magazine). 150 grams (5.3 Oz)
PN: 0221, A$235 ea AVAILABLE NOW.
.jpg&height=267 "WR VC Speedline 308 7x64 3006 10R")
WR Speedline 308 / 3006 magazine is up to the Gen 3, noticable with the rebated border around the WR logo as per the Gen 2, but now has adopted the wide body design, so it is now the most shallow in depth Speedline magazine WR have made.

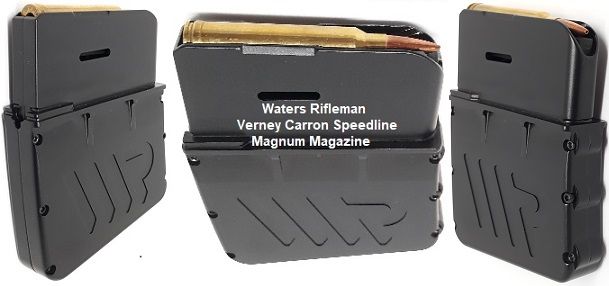

GEN 3 - 300 Win Mag and 7mm Rem Mag 8 SHOT 86mm OAL
(pic shows 300 Win Mag case). 150 grams (5.3 Oz)
PN: 0222, A$235 ea AVAILABLE NOW.
NOTE: Magnum magazine identifiable by the 2x vertical ribs.
.jpg&height=150.279 "WR VC Speedline Mag Magnum 8R")
Note: Belted magnums such as 7mm Rem Mag, 300 Win Mag will feed with care of not interlocking case belts when stacking/charging the mag.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
WR SINGLE ROUND LOADING BLOCK for VERNEY CARRON SPEEDLINE
PN: 0223, FDM print ABS version ONLY. A$20ea AVAILABLE NOW.
Used to conveniently shoot 1 round at a time.Turns your repeating VC Speedline into a single shot for easy feeding and minimising bullet tip damage to get the best ballistics and accurancy out of your rifle.Use while cleaning to stop objects falling into the mag well.Allows the easy feeding of extra long OAL loaded ammo that won't fit inside the magazine.
*****************************************************************
COMING SOON: SPECIFIC BUILT 308 10R Speedline magazine.
Designed specifically to keep rounds forward (like the factory 308 magazines) without the use of an insert.
308 SHOT. Max Overall round length of 73mm (2.87"). 170 grams (5.4 Oz)PN: 0224, A$235 ea ETA LATE MAY 2023.
=====================================================================================================================
ENQUIRIES: e-mail waters rifleman via the contact form on the HOME PAGE...Please simply advise which items you are interested in, how many and your location.Please check your reply email address (all correspondence is via email ONLY)....You’ll then be directed to a distributor that services your region...
